What is a belt vulcanizer?

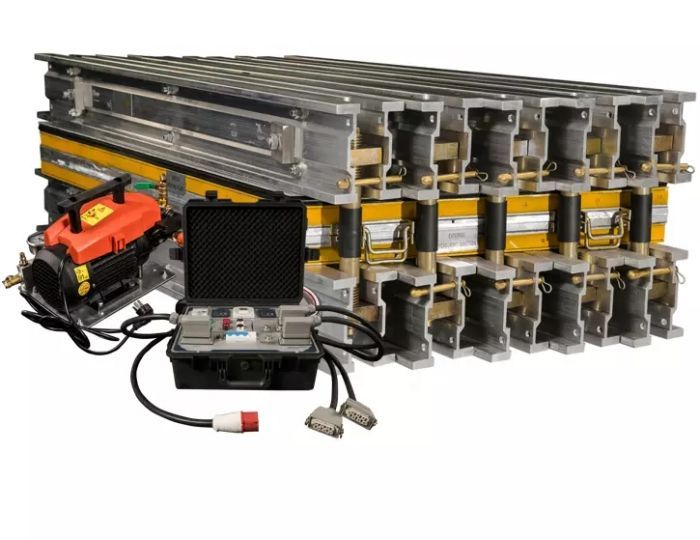

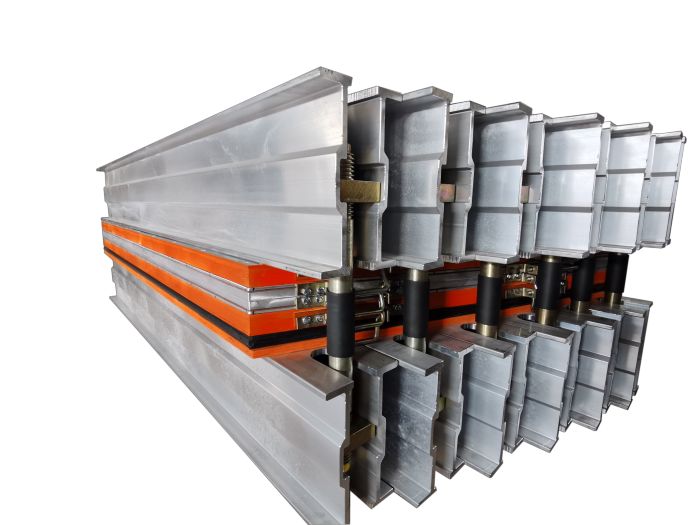

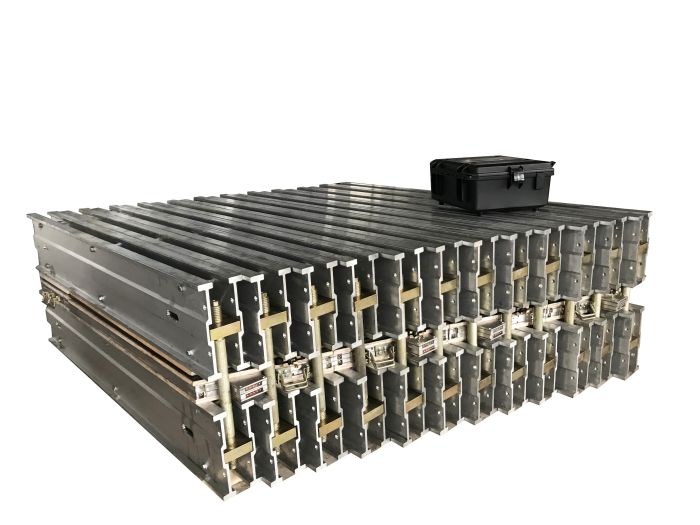

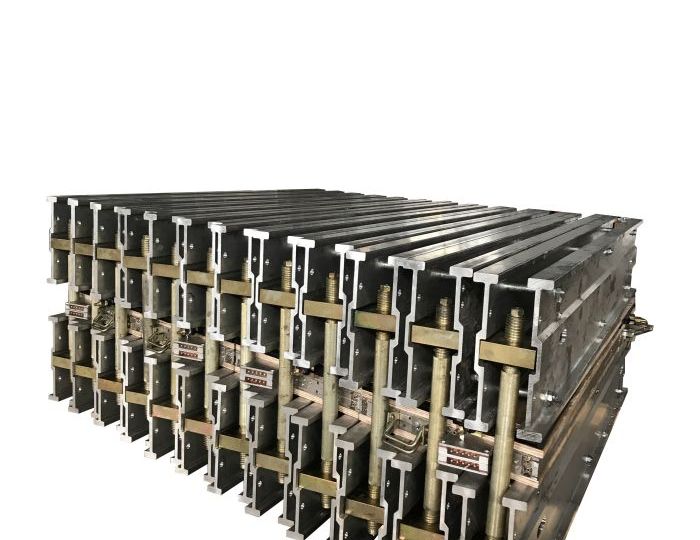

Hot vulcanize gadget is specifically product of aluminum and used for the splicing of rubber conveyor belts together with EP, NN and Steel wire belt etc. It may be extensively utilized in metallurgical flora, mines, electric powered energy flora and docks etc.
Hot vulcanizing is a technique of restore that makes use of each heater and pressure bag jointing restore substances with compromised sections of the belt. The belt need to be wiped clean and freed from all oily, greasy materials earlier than starting.
How do you Vulcanise a conveyor belt?
- Select the right machine and tools.
- Master the correct joint method
Vulcanisation is an involved procedure that can offer a smooth splice with minimal risk of snagging, tearing and other harmful wear to the belt.
There are two types of vulcanising processes, hot and cold. Each process requires unique tools and an intimate knowledge of the rubber bonding process.Hot vulcanisation splices are heated and cured under pressure with a vulcanising press.
The process of hot vulcanising involves using a heated press to splice in a new section of rubber. A hot vulcanised joint will be stronger and longer lasting than those formed by other methods. Belts that have had vulcanised repairs are easier to keep clean as there are no gaps or holes for bacteria to establish in.
Cold vulcanisation does not use a press, but uses a bonding agent that causes a chemical reaction to splice the two belt ends together. This chemical reaction ensures that cross-connections between different monomer chains are created. This splices the two ends of the belt together.
Hot and cold splicing of belts require meticulous preparation to prevent contamination of the splicing area. Cold splicing requires relatively warm conditions and low moisture to ensure the cold vulcanizing cements work optimally.
We do not recommend cold bonding in most instances as we see a large amount of cold bond joints that have prematurely failed.
Features of our machines
- Quick water cooling device: 15 minutes From 145 ºCdown to 80 ºCor even lower
- Cooling source: Water or Air
- Heating source: Electricity
- Heating time: from room temperature to vulcanization temperature need less than 20 minutes
- Heating plate surface temperature difference: ± 1 ºC
- The temperature adjustment range: 0 ~ 200 ºC(custom)
- Vulcanization pressure: Max 2.5MPa.
- Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)
- Usually 10mm~25mins, 20mm~35mins
- Automatic mute pressure pump

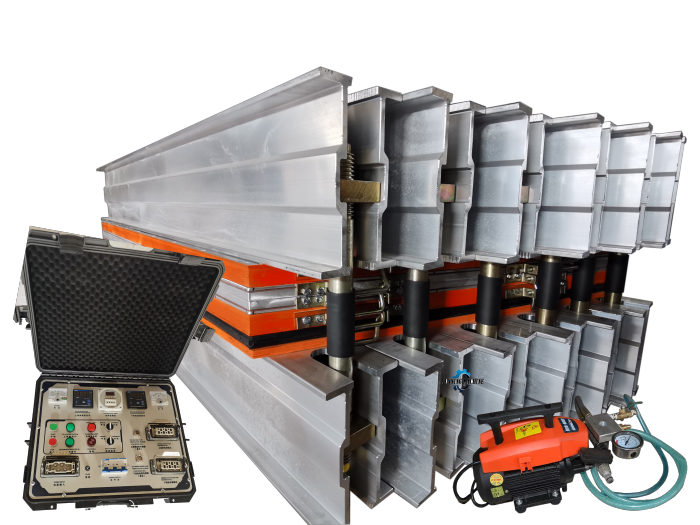

- Automatic control panel: insulating and waterproof, security alarm, Auto power-off when reach the vulcanization temperature.

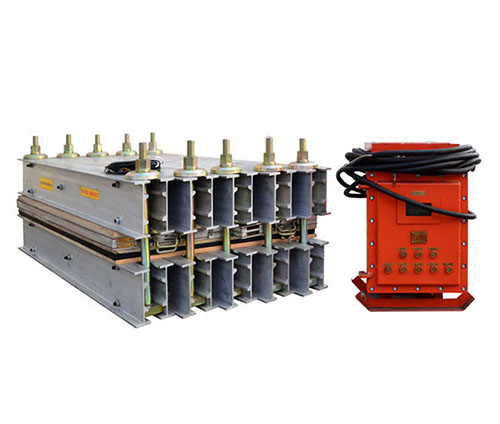

- Upgrading explosion proof control box option available.
Reasons for choosing us
- Professional manufacturing experience, we have more than 30 years of experience in the development and manufacturing of jointing machines, we will continue to improve the quality of our jointing machines according to the different feedback from our customers.
- Perfect after-sales service, we can teach our customers to use the machine by hand，teach ours clients the following skills：preparation of belt ends, marking and cutting the steps, removal of excess material, grinding the steps, centring and attaching the belt ends, adding fresh material for splicing, inserting the splice into the press and curing the splice.
